LoRa RF module uL-B1

PRODUCT > Wireless data transmission module > LoRa RF module uL-B1

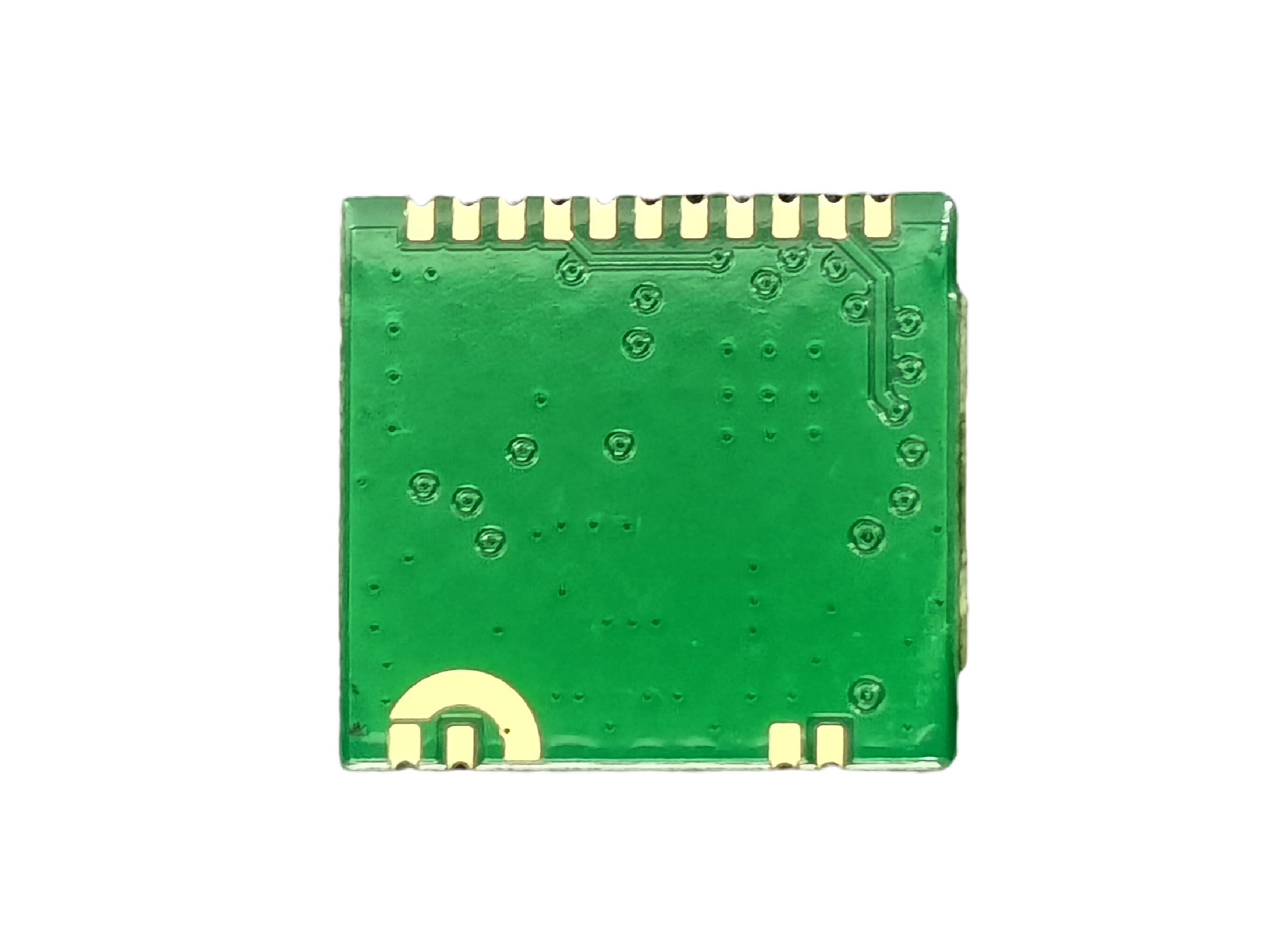

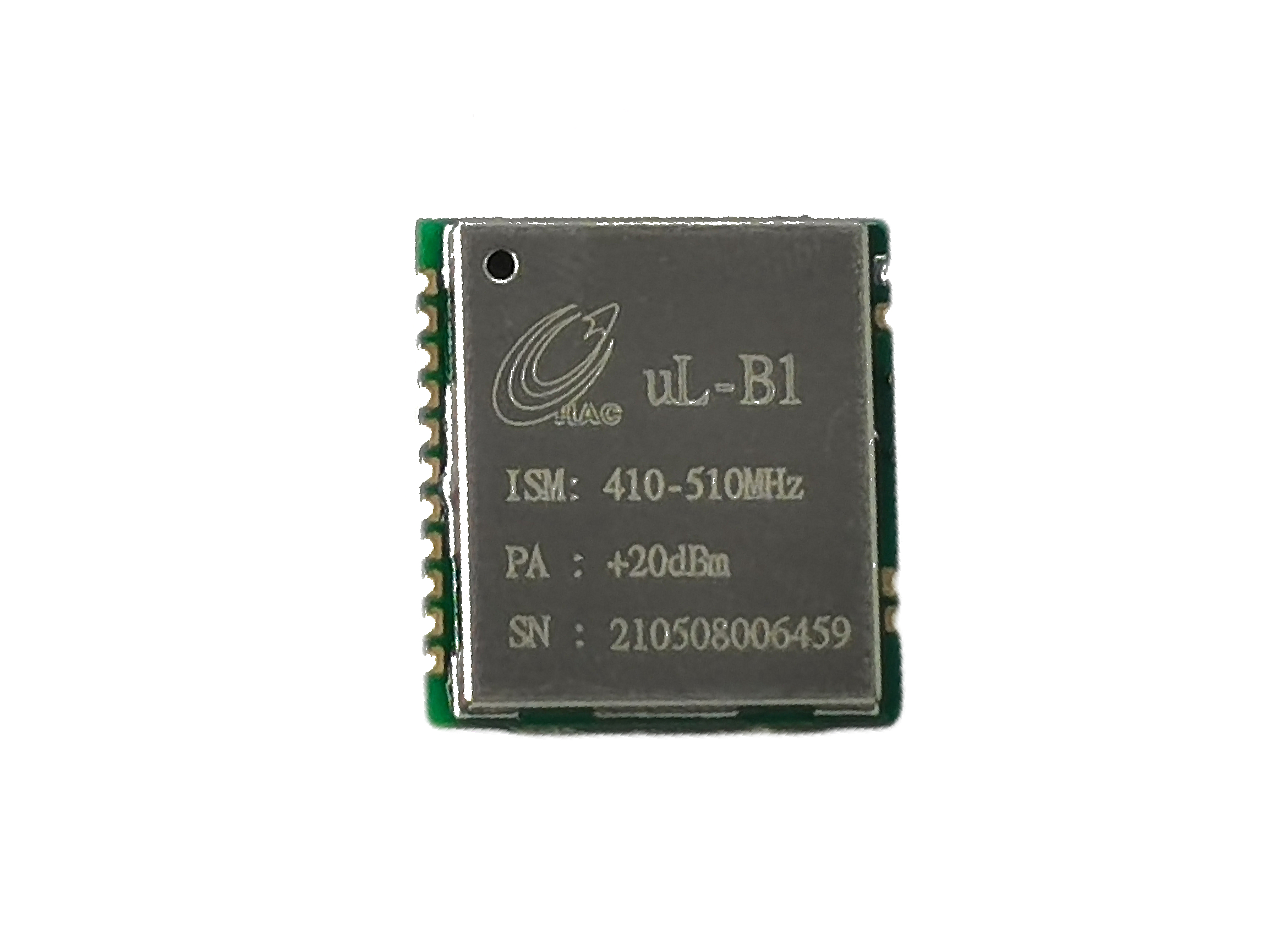

LoRa RF module uL-B1

Product Model: HAC-uL

　　The HAC-uL module is a small size, LCC packaged LoRa module independently developed by our company. The module is designed based on LoRaTM remote modulation and demodulation, which enables ultra-long-distance communication with small amount of data in complex environments. Compared with the traditional modulation technology, the HAC-uL module has a significant improvement in the performance of suppressing co-channel interference during the communication process, which solves the disadvantage that the traditional design scheme cannot take into account the distance, anti-interference ability and power consumption at the same time.

RF parameters

· LoRaTM modem;

· Support modulation methods such as FSK/GFSK/MSK/GMSK/LoRa/OOK;

· Effective transmit power up to 70mW (18.5dbm);

· Adjustable power level;

· Support multiple baud rates and multiple RF rates;

· Receive sensitivity up to -140dBm, 160dBm link budget;

· The visible communication distance of the module is greater than 7 km, and the urban coverage distance is greater than 5 km.

Basic Features

· Working voltage 2.5 ~ 3.7V;

· Modulation method: FSK/GFSK/MSK/GMSK/LoRa/OOK;

· Support a variety of low-power operating modes;

· Half-duplex working mode;

· SPI interface type;

· RSSI dynamic range: 127dBm;

Size: 17.5mm×16.5mm×2.5mm
